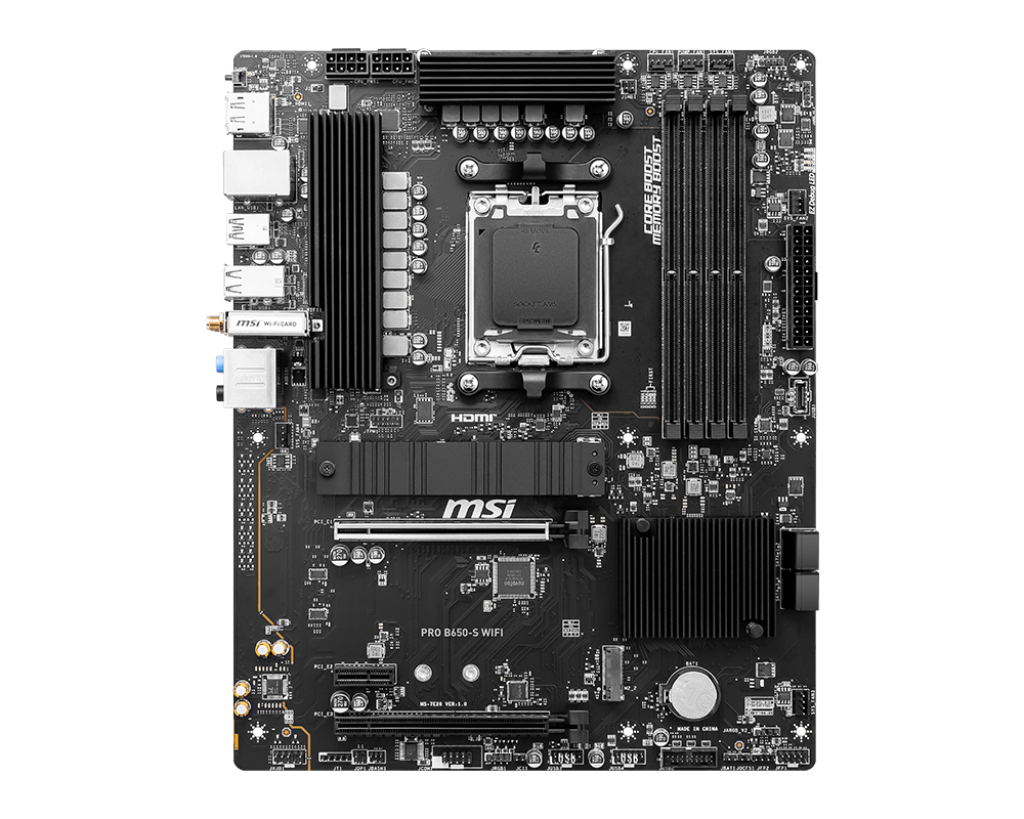

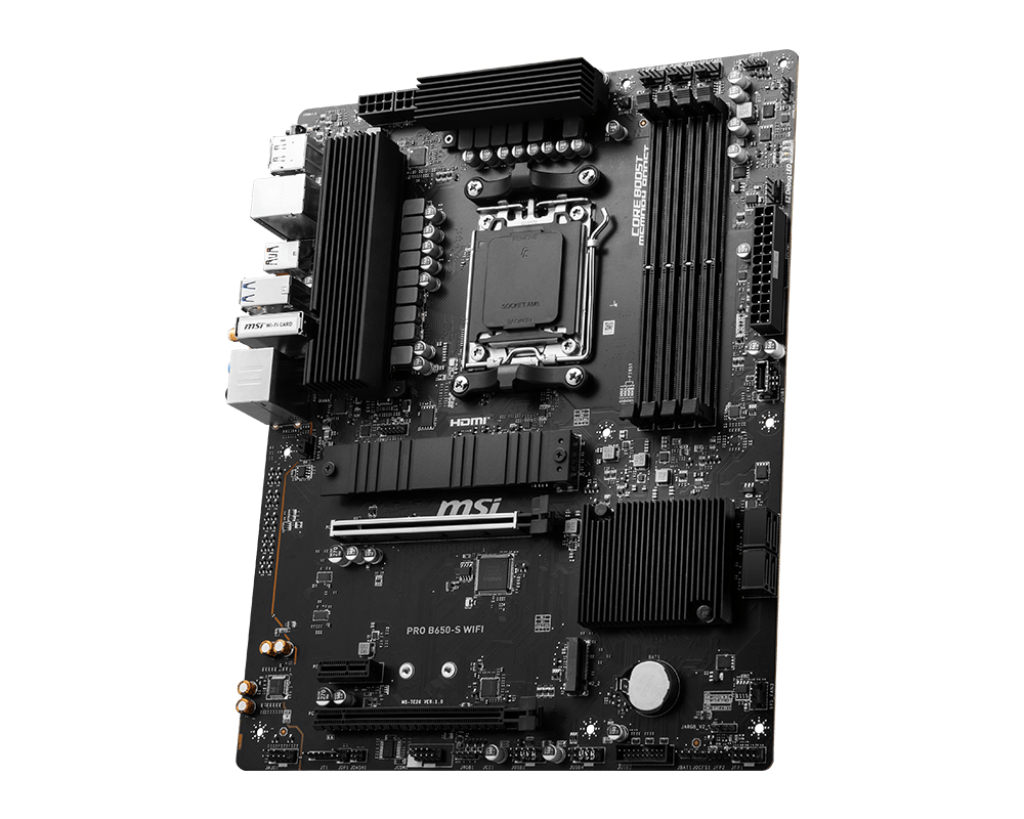

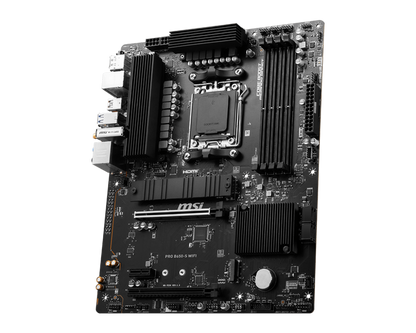

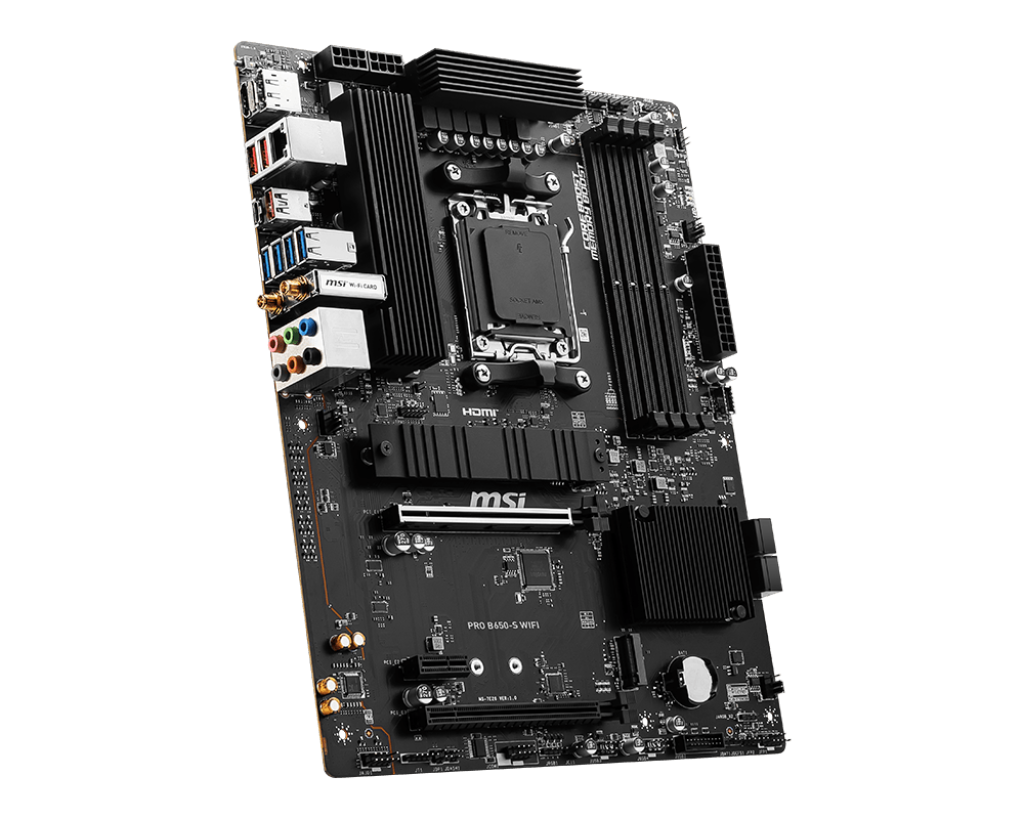

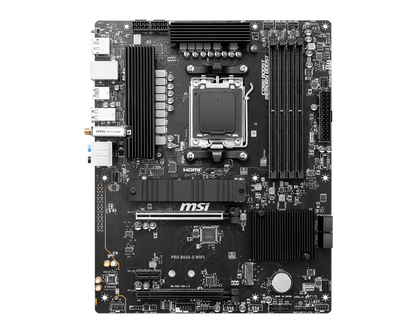

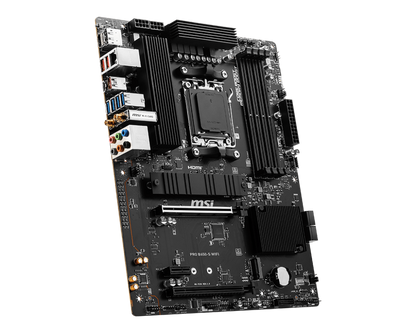

MSI PRO B650-S WIFI AMD AM5 Motherboard (DDR5/PCIe 4.0/Wi-Fi 6E/USB 3.2 Gen2)

MSI PRO B650-S WIFI – AMD AM5 ATX Motherboard for Ryzen 7000 Series

Chipset: AMD B650 | Socket: AM5 | Form Factor: ATX

Key Specifications

• CPU Support: AMD Ryzen 7000 Series Desktop Processors (Socket AM5)
• Memory: 4x DDR5 slots, up to 192GB, DDR5 7200+(OC) / 4800(JEDEC) MHz
• Memory Features: Dual-Channel, AMD EXPO support, non-ECC unbuffered
• Onboard Graphics: 1x HDMI 2.1 (4K@60Hz) + 1x DisplayPort 1.4 (4K@60Hz)
• PCIe Slots: 1x PCIe 4.0 x16 (CPU), 1x PCIe 3.0 x1 (Chipset), 1x PCIe 4.0 x4 (Chipset)
• Storage: 2x M.2 (PCIe 4.0 x4, NVMe), 4x SATA 6Gbps, RAID 0/1 support

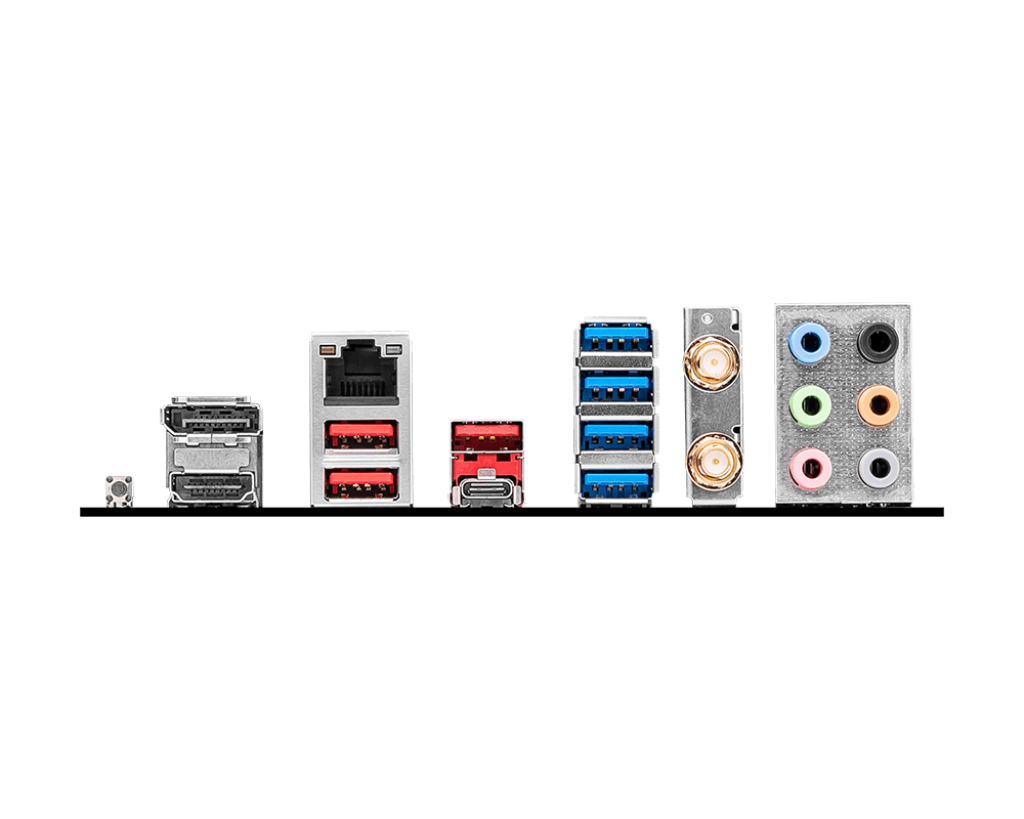

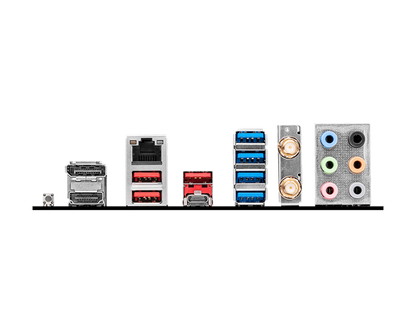

• USB (Rear): 3x USB 3.2 Gen2 Type-A, 1x USB 3.2 Gen2x2 Type-C (20Gbps), 4x USB 3.2 Gen1 Type-A
• LAN: Realtek 8125BG 2.5G LAN
• Wi-Fi: AMD Wi-Fi 6E (802.11 a/b/g/n/ac/ax), 2.4GHz / 5GHz / 6GHz
• Bluetooth: Bluetooth 5.3
• Audio: Realtek ALC897, 7.1-Channel HD Audio
• RGB: 2x ARGB V2 + 2x RGB LED connectors, 4x EZ Debug LED
• OS Support: Windows 11 / Windows 10 (64-bit)
• PCB Size: ATX (243.8mm)

Key Features

• ✅ AMD Ryzen 7000 Ready: Full support for latest AM5 processors
• ✅ DDR5 Boost: Up to DDR5 7200+ MHz overclocking with AMD EXPO
• ✅ Wi-Fi 6E: Ultra-fast tri-band wireless with Bluetooth 5.3
• ✅ PCIe 4.0: High-speed GPU and NVMe SSD support
• ✅ 2.5G LAN: Realtek 2.5 Gigabit Ethernet for fast wired networking
• ✅ USB 3.2 Gen2x2: 20Gbps Type-C rear port for ultra-fast data transfer
• ✅ RAID Support: RAID 0 & 1 for both SATA and M.2 NVMe storage
• ✅ Flash BIOS Button: Easy BIOS update without CPU or RAM

Why Choose MSI PRO B650-S WIFI?

Built for AMD Ryzen 7000 series, the MSI PRO B650-S WIFI delivers next-gen DDR5 memory support, PCIe 4.0 speeds, Wi-Fi 6E connectivity, and robust USB 3.2 Gen2 ports – all in a reliable ATX form factor. Perfect for high-performance gaming and professional workstation builds.
